Low Cost Emergency Ventilator
This is my senior undergraduate project, along with 4 other members, which involved design and fabricating a modular, low cost, and open source emergency mechanical ventilator with a 3D printed casing to help combat the shortages of ventilators that resulted from the COVID-19 pandemic. The demonstration video below shows the design, our in house made printed circuit board and the rest of the electronics, the weight, and the graphical user interface of our mechanical ventilator.

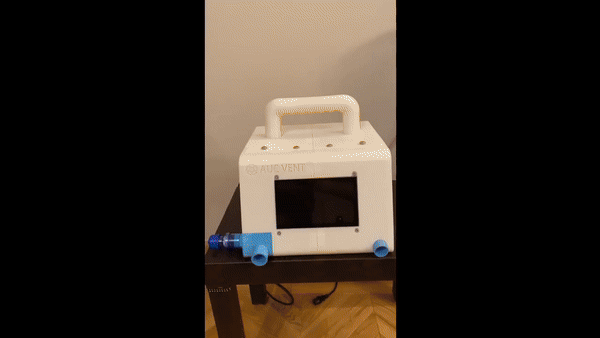

Design Showcase Video

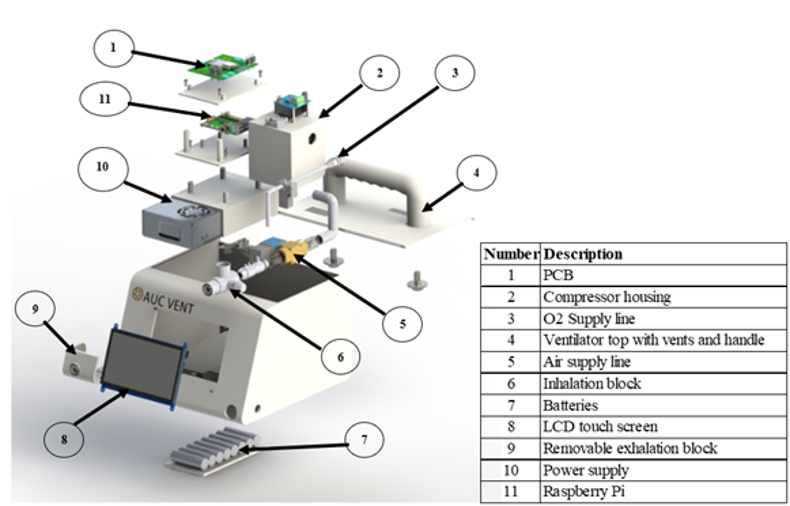

Design Exploded View

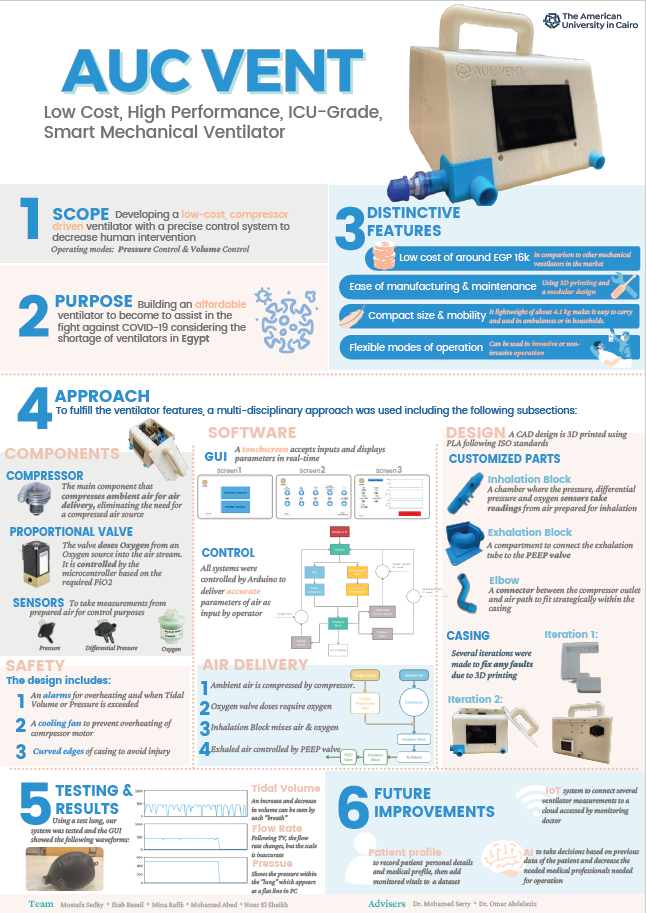

The ventilator houses three pressure sensors, an oxygen control valve, an oxygen concentration sensor, a 30,000 rpm medical grade compressor, and positive pressure valve. Check out our project's poster below.
